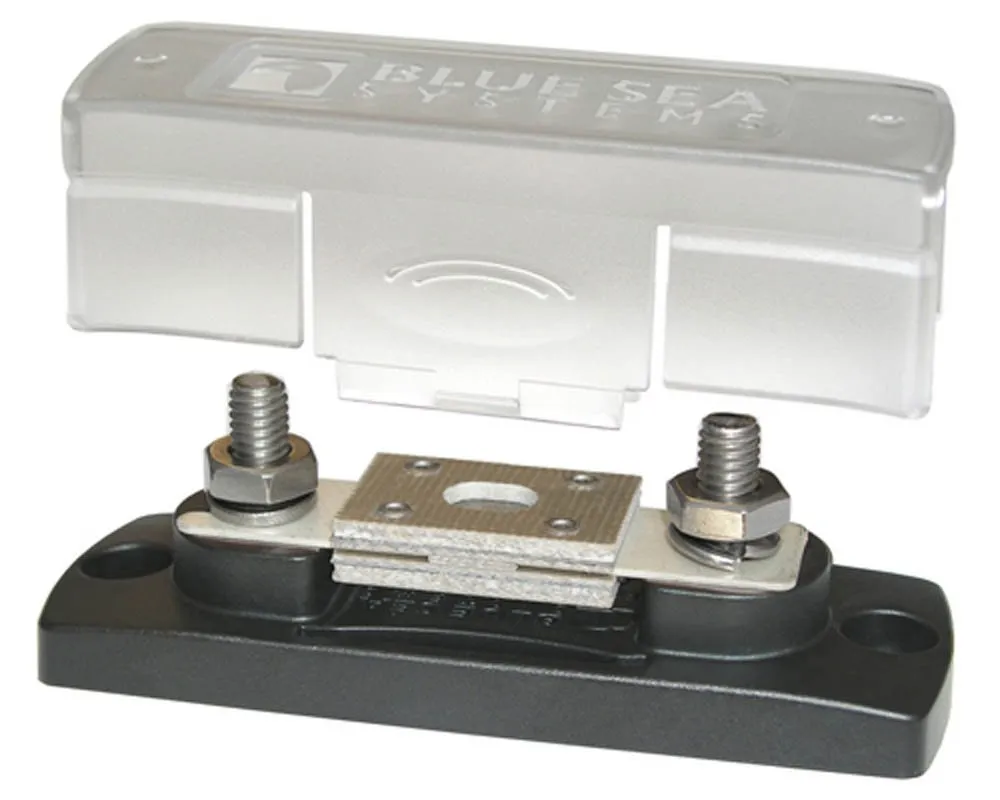

FUSEBLOCK ANL 300 AMP
FUSEBLOCK ANL 300 AMP[X]
FUSEBLOCK ANL 300 AMP 5005
Item # 7072850
Mfg No: 03-3500
Mfg: BLUE SEA SYSTEMS
manufacture logo
ANL 300 Fuse Block with Cover - This fuse block will accept 5/16 inch (M8) ring terminals. It is for use on systems up to 32 Volts DC and has a swing out design that allows you to replace the fuse without removing the fasteners. Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact and the UL 94-V0 base resists high heat. Insulating cover satisfies ABYC/USCG requirements and it gives you cover breakouts that allow wire access in any direction. Fuse sold separately. Maximum Cable Size: 2/0 AWG. Accept #10 (M5) Screw for Mounting Holes. Maximum Amperage: 300 Amps. 1 per package.

Summary

Item Description


5005 03-3500 19-3471 51420 5005-BSS ANL 300 Fuse Block with Cover - This fuse block will accept 5/16 inch (M8) ring terminals. It is for use on systems up to 32 Volts DC and has a swing out design that allows you to replace the fuse without removing the fasteners. Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact and the UL 94-V0 base resists high heat. Insulating cover satisfies ABYC/USCG requirements and it gives you cover breakouts that allow wire access in any direction. Fuse sold separately. Maximum Cable Size: 2/0 AWG. Accept #10 (M5) Screw for Mounting Holes. Maximum Amperage: 300 Amps. 1 per package.

Specifications

There are no specifications listed at this time. Please check again for additional updates in the future

Q & A

There are currently no questions listed for this item.


Videos

There are no videos listed at this time for this item.

Photos

All images list for this item: (hover over image for larger image)

thumbnail image of the product
FUSEBLOCK ANL 300 AMP
